CONDENSATE PUMP FOR AC

WHY YOUR SPLIT AIR CONDITIONER NEEDS A LITTELPUMP

Indoma Industries P. Limited, who have transformed the Air cooler industry with their ‘Littelpump’ submersible pumps, now introduce their innovative ‘CONDENSATE DRAIN PUMPS’ for taking care of water drainage of Split ACs in your home/offices.

The small ‘SLIMLINE’ pump with collection unit, installs inside the air conditioner, making it totally invisible to the eye. It collects the condensate and pumps it out automatically, be it near the outdoor unit or elsewhere. Supremely suitable for places such as basements or where ever gravity led drainage of water is not possible or desired. A super effective solution surely.

So say bye bye to the unseemly buckets and pipes and say hello to the ‘Slimline’ condensate pumps. Another convenience product from the famed ‘Littelpump’.

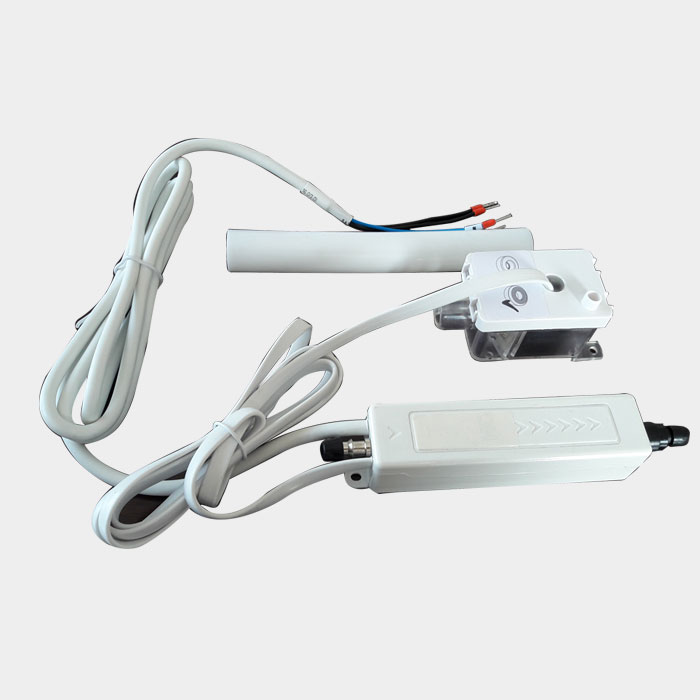

SLIMLINE CONDENSATE PUMP

• Power supply :230V AC 50/60Hz
• Max.flow :15L/h @ 0 head
• Sound level :19dB(A) @ 1m
• Max.recommended head :12m
• Max.suction lift :2m
• Max capacity: 16kw / 54600 Btu/h
• Safety switch:3A Normally closed
• Max.water temperature:40ºC
• Discharge tube: 6mmID
• Rated : Non continuous
• IP Protection :IPX5
• Thermally protected
• Fully potted
• L×W×H: 150mm×29mm×29mm

Details of parts

1. Slimline Pump unit

2. 6mm ID vinyl tube

3. Assembled Inline reservoir, including:

     3a. lid & sensor cable

     3b. float

     3c. filter

     3d. reservoir

4. 1.5m length of 6mm ID vinyl tube

5. 20cm length of 4mm ID vinyl tube

6. Inlet tube

7. tube Power cable

8. tube 2 x self adhesive velcro strips

9. 2 x adapters
10. 4 x 200mm x 5mm cable ties

11. 2 x 100mm x 3mm cable ties

*NOTE:
You will need several metres of 9mm
OD x 6mm ID vinyl tube.

Littelpump Airconditioning Condensate Pump Introduction

Installation Guide Littelpump Slim Line Condensate Pump for Airconditioner
